Substations Overlay

Learn about the Substations overlay, including the definition, benefits, tips, coverage and update frequency.

Available with any of the following subscriptions

  • All plans

Definition

 A substation is a set of equipment for reducing the high voltage of electrical power transmission to that suitable for supply to consumers.

This overlay represents electric power substations as identified in the Homeland Infrastructure Foundation-Level Data (HIFLD).

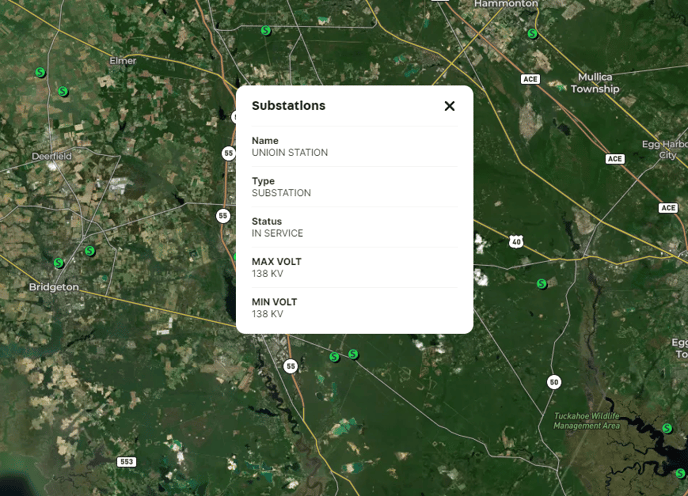

Substations on map

Key Benefits

  • Can be a useful tool for renewable energy developers to assess local markets
  • Helpful to commercial and industrial builders who are interested in developing in areas with nearby energy resources.

Tip:  Pop-up includes the name, type, service status, maximum voltage and minimum voltage for each substation.

Limitations:  Data does not include intra-distribution-level infrastructure. This overlay has been removed from the HFLID and can no longer be updated. Last update was 05/21.

Coverage

Contiguous United States (excludes Hawaii and Alaska)

Update Frequency

As updates are available
